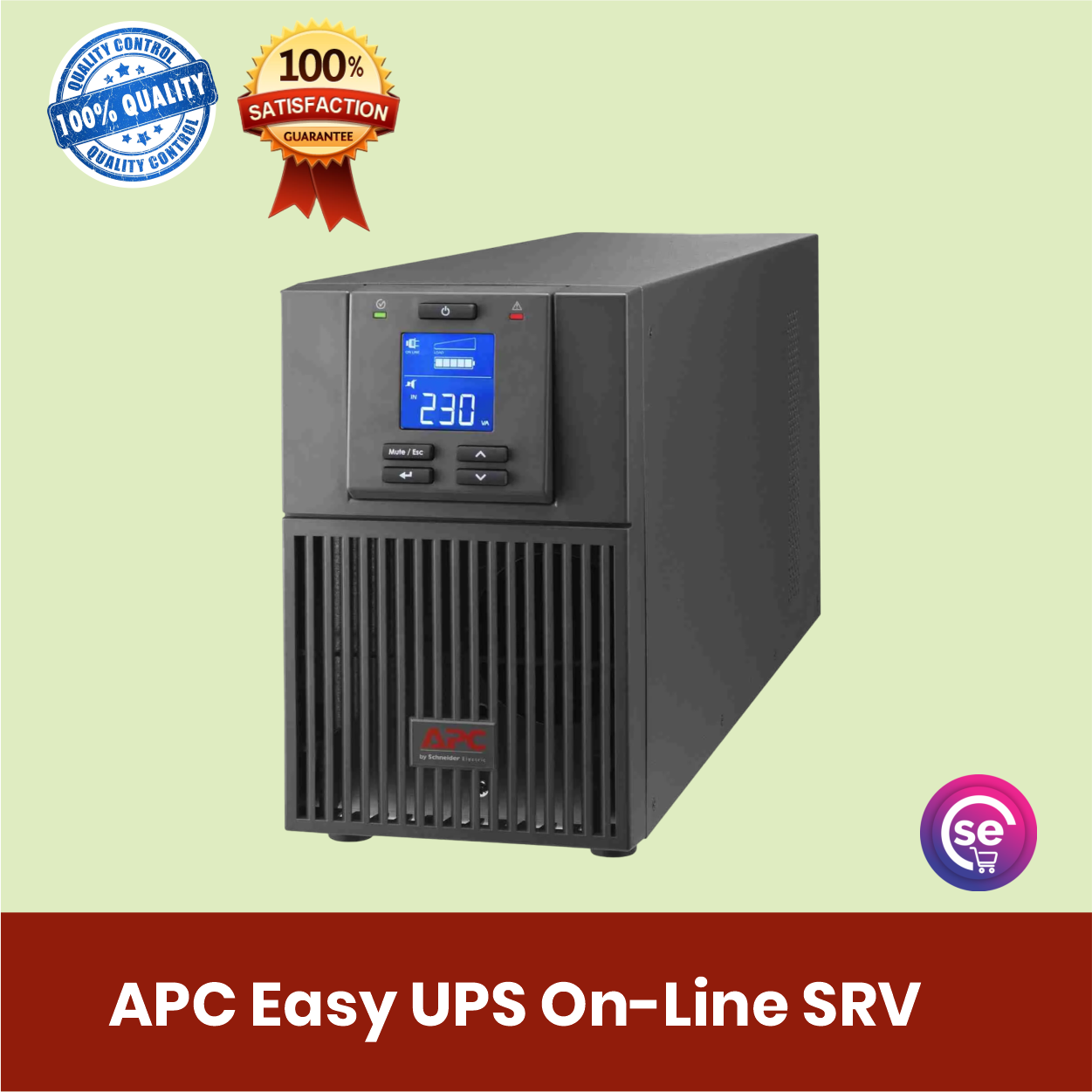

APC Easy UPS On-Line SRV 1000VA/800W 230V SRV1KI

APC Easy UPS On-Line SRV 1000VA/800W 230V SRV1KI

The  EPC Easy UPS On-Line SRV 1000VA/800W is a high-quality, double-conversion online uninterruptible power supply (UPS) designed to provide essential power protection in even the most unstable power conditions. With its robust design and advanced features, this UPS is ideal for protecting critical equipment and ensuring reliable power continuity.

Key Features:

• Rated Power: 800 Watts / 1000 VA
• Main Output Voltage: 230V (Configurable for 220V, 230V, or 240V)
• Input Connection Type: IEC 60320 C14
• Output Connection Type: 3x IEC 60320 C13
• Run Time: 3 minutes 49 seconds at full load (800W)
• Battery Type: Lead-acid battery with a voltage of 24V
• Battery Recharge Time: 4 hours
• Max. Capacity Used: 100%
• Efficiency: 88% at full load
• Wave Type: Sine wave

Protection & Performance:

• Double Conversion On-Line Technology: Ensures high-quality power supply and voltage regulation.
• Internal Bypass: Automatic and manual bypass options for uninterrupted power supply during maintenance or overload conditions.
• Cold-start Capable: Provides temporary battery power when utility power is unavailable.
• Harmonic Distortion: Less than 3% for clean and stable power output.
• Crest Factor: 3:1 for handling peak loads effectively.

Physical Specifications:

• Dimensions (H x W x D): 22.3 cm x 14.5 cm x 28.8 cm
• Net Weight: 9.3 kg
• Color: Black (RAL 7010)
• Mounting Position: Vertical (Not rack-mountable)

Environmental Specifications:

• Operating Temperature: 0 to 40°C
• Storage Temperature: -20 to 50°C
• Operating Relative Humidity: 0 to 95% non-condensing
• Storage Relative Humidity: 0 to 95% non-condensing
• Operating Altitude: 0 to 3000 meters
• Storage Altitude: 0 to 15000 meters
• Acoustic Level: 50 dBA
• Heat Dissipation: 372 BTU/hr
• IP Degree of Protection: IP20

Conformance:

• Certifications: CE, UKCA, EAC, TISI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Communications & Management:

• Alarm Notifications: Includes alarm when on battery, distinctive low battery alarm, and overload continuous tone alarm.
• Control Panel: Multifunction LCD status and control console for easy monitoring and management.
• Interface Ports: USB and RS-232 for configuration and management.

Included Accessories:

• 1x IEC 60320 C13 to Schuko power cable
• 1x IEC 60320 C13 to C14 power cable
• 1x USB cable
• 1x RS-232 configuration cable
• User manual

Additional Information:

• Battery Life: 3 to 5 years
• Replacement Battery: APCRBCV203
• Battery Charger Power: 30 W rated
• Surge Protection: 600 Joules
• Ambient Air Temperature for Storage: -20 to 50°C
• Storage Relative Humidity: 0 to 95% non-condensing
• Storage Altitude: 0 to 15000 meters
