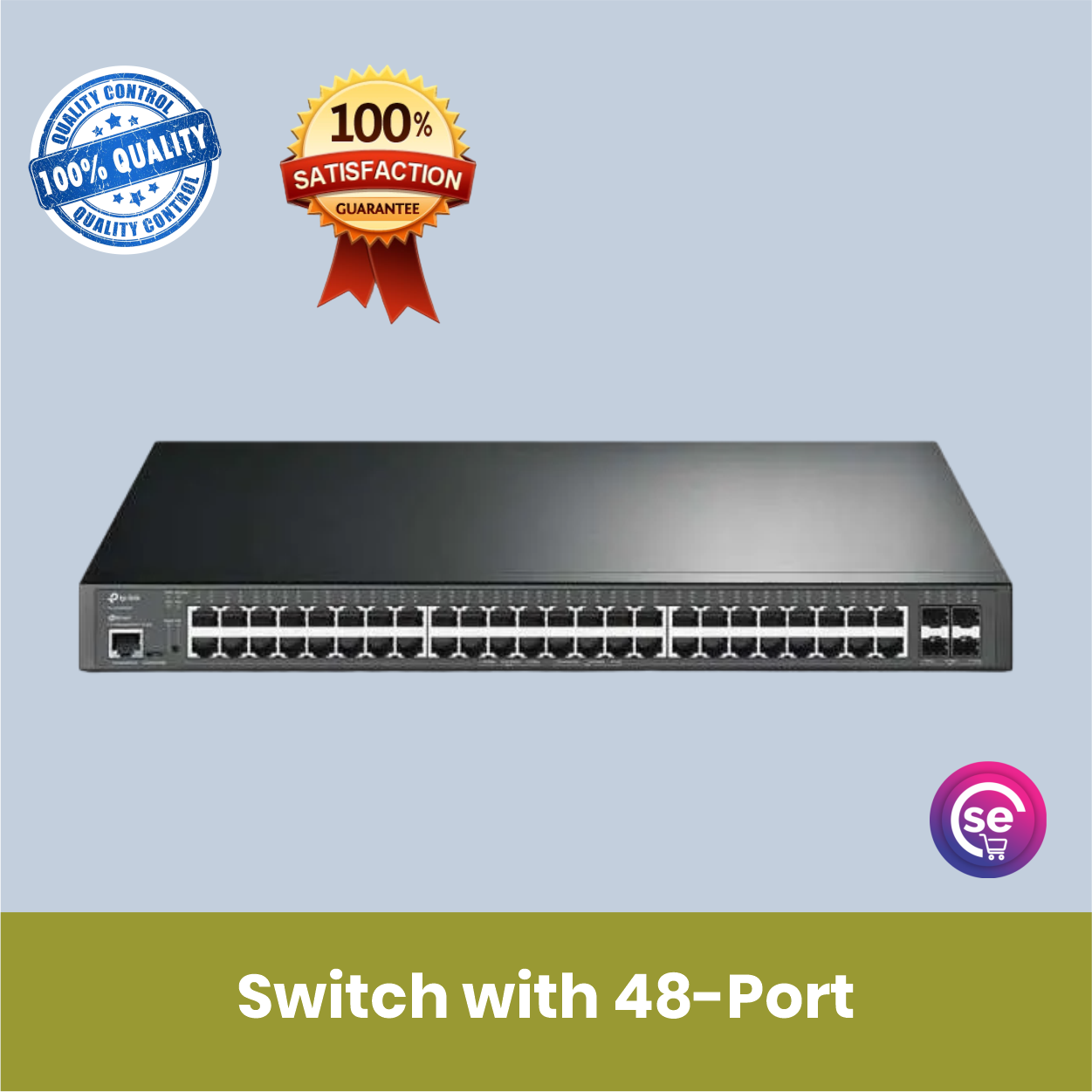

Managed Switch with 48-Port

The TP-Link TL-SG3452XP is a high-performance managed switch designed to provide robust network connectivity with advanced management and security features. It includes 48 PoE+ ports and 4 10GE SFP+ slots, making it ideal for businesses requiring high-bandwidth and flexible PoE configurations.

 Features:

• 10G Lightning-Fast Uplink: Equipped with 4× 10 Gbps SFP+ slots for high-bandwidth connectivity and non-blocking switching capacity.
• Flexible PoE Port Configuration:
  • 48× PoE+(802.3at/af) 10/100/1000 Mbps RJ45 ports.
  • Each port provides up to 30W, with a total PoE budget of 500W.
  • Supports a variety of PoE devices such as access points, IP cameras, and VoIP phones.
• Integrated into Omada SDN:
  • Part of Omada’s Software Defined Networking (SDN) platform.
  • Integrates network devices including switches, access points, and gateways.
  • Offers multiple control options: Omada Hardware Controller, Omada Software Controller, or Omada Cloud-based Controller.
  • Standalone mode also available.
• Cloud Access:
  • Centralized cloud management of the entire network from different sites.
  • Managed via the Omada app, providing remote access from anywhere, anytime.
• Enhanced Network Security:
  • Advanced security features such as 802.1Q VLAN, IP-MAC-Port binding, ACL, Port Security, DoS defend, Storm control, DHCP Snooping, 802.1X RADIUS authentication, and more.
  • Ensures secure and reliable network performance.

 Specifications:

• Hardware Specifications:
  • Ports: 48× 10/100/1000 Mbps RJ45 Ports, 4× 10 Gbps SFP+ Slots.
  • PoE Standard: 802.3af/at.
  • PoE Power Budget: 500W.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.944 Mpps.
  • Packet Buffer Memory: 4.1 MB.
  • MAC Address Table: 16K.
• Management Features:
  • Omada SDN Integration: Supports Omada Hardware/Software/Cloud-based Controllers.
  • Cloud Access: Centralized management via Omada app.
  • Standalone Mode: Yes.
• Security Features:
  • 802.1Q VLAN, IP-MAC-Port Binding.
  • Access Control Lists (ACL).
  • Port Security.
  • Denial-of-Service (DoS) Defend.
  • Storm Control.
  • DHCP Snooping.
  • 802.1X RADIUS Authentication.
• Environmental & Physical Specifications:
  • Power Supply: 100-240V AC, 50/60Hz.
  • Power Consumption: 51.7W (System), 557.5W (PoE full load).
  • Dimensions (W x D x H): 440 × 330 × 44 mm.
  • Operating Temperature: 0°C to 40°C.
  • Storage Temperature: -40°C to 70°C.
  • Operating Humidity: 10% to 90% non-condensing.
  • Storage Humidity: 5% to 90% non-condensing.
